雪夜杂谈——glibc _IO_FILE分析

引言：

近年来，对于用户态的堆利用已经十分成熟，但是，在打击点（控制流）方面还是十分单一，不过是malloc hook/free hook的利用（当今能够轻松进行GOT篡改和栈返回地址篡改的题目确实已经很少了），_IO_FILE利用逐渐风靡。
说到_IO_FILE，我们其实可以将其当作用户态对于系统调用的包装，它使得开发者能够更加透明地利用系统文件的读写，并且隐藏块读取（设备友好）和字节读取（开发者友好）的冲突。它定义了对于数据的组织和存取方法（只不过更加上层，在用户层的定义封装方法）。
以下将对glibc中的fread/fwrite进行简要分析：

fread函数：读入ptr-end之间的数据

_IO_file_xsgetn：根据缓冲区的情况决定如何读入

其调用图如下：

1
2
3
4
5
6
7
_IO_fread
    |----_IO_XSGETN
            |----_IO_file_xsgetn
                        |----_IO_doallocbuf
                        |           |----malloc
                        |----_IO_new_file_underflow
                                    |----SYSREAD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
_IO_size_t _IO_file_xsgetn (_IO_FILE *fp, void *data, _IO_size_t n)
{
  _IO_size_t want, have;
  _IO_ssize_t count;
  char *s = data;
  want = n;
  if (fp->_IO_buf_base == NULL)
  {
      //alloc the buffer
      _IO_doallocbuf (fp);
  }

  while (want > 0)
  {
    have = fp->_IO_read_end - fp->_IO_read_ptr;
    //enough data for request->copy all the data to user
    if (want <= have)
    {
      memcpy (s, fp->_IO_read_ptr, want);
      fp->_IO_read_ptr += want;
      want = 0;
    }
    else
    {
    //not enough,read the remainder first
      if (have > 0)
      {
        memcpy (s, fp->_IO_read_ptr, have);
        s += have;
        want -= have;
        fp->_IO_read_ptr += have;
      }
      /* If we now want less than a buffer, underflow and repeat
         the copy.  Otherwise, _IO_SYSREAD directly to
         the user buffer. */
      if (fp->_IO_buf_base
          && want < (size_t) (fp->_IO_buf_end - fp->_IO_buf_base))
      {
          if (__underflow (fp) == EOF)
            break;
          continue;
      }

      /* These must be set before the sysread as we might longjmp out
         waiting for input. */
      _IO_setg (fp, fp->_IO_buf_base, fp->_IO_buf_base, fp->_IO_buf_base);
      _IO_setp (fp, fp->_IO_buf_base, fp->_IO_buf_base);

      /* Try to maintain alignment: read a whole number of blocks.  */
      count = want;
      if (fp->_IO_buf_base)
      {
        _IO_size_t block_size = fp->_IO_buf_end - fp->_IO_buf_base;
        if (block_size >= 128)
          count -= want % block_size;
      }

      count = _IO_SYSREAD (fp, s, count);
      if (count <= 0)
      {
        if (count == 0)
          fp->_flags |= _IO_EOF_SEEN;
        else
          fp->_flags |= _IO_ERR_SEEN;
        break;
      }

      s += count;
      want -= count;
      if (fp->_offset != _IO_pos_BAD)
        _IO_pos_adjust (fp->_offset, count);
    }
  }
  return n - want;
}

_IO_new_file_underflow

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
int _IO_new_file_underflow (_IO_FILE *fp)
{
  _IO_ssize_t count;
  //have read all the remainder
  if (fp->_IO_read_ptr < fp->_IO_read_end)
    return *(unsigned char *) fp->_IO_read_ptr;
  //if no buffer allocate one!
  if (fp->_IO_buf_base == NULL)
  {
      _IO_doallocbuf (fp);
  }
  _IO_switch_to_get_mode (fp);
  //no remainder,so flush the read buf
  fp->_IO_read_base = fp->_IO_read_ptr = fp->_IO_buf_base;
  fp->_IO_read_end = fp->_IO_buf_base;
  fp->_IO_write_base = fp->_IO_write_ptr = fp->_IO_write_end = fp->_IO_buf_base;
  //read into all the buf
  count = _IO_SYSREAD (fp, fp->_IO_buf_base, fp->_IO_buf_end - fp->_IO_buf_base);
  if (count <= 0)
  {
    if (count == 0)
      fp->_flags |= _IO_EOF_SEEN;
    else
      fp->_flags |= _IO_ERR_SEEN, count = 0;
  }
  //data is between read ptr and read end
  fp->_IO_read_end += count;
  return *(unsigned char *) fp->_IO_read_ptr;
}

通过上述代码，我们可以发现，fread事实上是对系统调用read的包装，由于需要配合缓冲区而稍显复杂。在_IO_file_xsgetn中，函数先尽力将缓冲中的数据尽数输出，如果仍然达不到需要，则调用_IO_new_file_underflow过程。该过程中因为考虑到缓冲区中已经没有了未读数据，就直接刷新缓冲（将读指针的始末调到缓冲的开始），并在读取之后将_IO_read_end指针指向末尾，完成了新的缓冲状态建立。


fread缓冲区操作

在这种模型中，每次调用freadlibc都会假设该文件的缓冲中可能有残留信息，也会在每次读取完成后达成该种状态，即：通过系统调用按用户需要读取，但underflow读取时按缓冲区块读取。

fwrite函数：输出base-ptr之间的数据

其调用图如下：

1
2
3
4
5
6
7
8
9
10
_IO_fwrite
    |----_IO_new_file_xsputn
                |----_IO_new_file_overflow
                |           |----_IO_doallocbuf
                |           |          |----malloc
                |           |----new_do_write
                |                      |----SYSWRITE
                |
                |----_IO_default_xsputn
                            |----_IO_new_file_overflow

_IO_xsputn：根据缓冲区的情况决定如何输出

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
_IO_size_t _IO_new_file_xsputn (_IO_FILE *f, const void *data, _IO_size_t n)
{
  const char *s = (const char *) data;
  _IO_size_t to_do = n;
  int must_flush = 0;
  _IO_size_t count = 0;
  //if there is no needbuf or is putting now->out put the line
  if ((f->_flags & _IO_LINE_BUF) && (f->_flags & _IO_CURRENTLY_PUTTING))
  {
    count = f->_IO_buf_end - f->_IO_write_ptr;
    if (count >= n)
	{
	  const char *p;
	  for (p = s + n; p > s; )
	  {
	    if (*--p == '\n')
		{
		    count = p - s + 1;
		    must_flush = 1;
		    break;
		}
	  }
	}
  }
  //count means how many empty buf we have and then we will fill it
  else if (f->_IO_write_end > f->_IO_write_ptr)
    count = f->_IO_write_end - f->_IO_write_ptr;

  //fill the buffer
  if (count > 0)
  {
      if (count > to_do)
	      count = to_do;
      memcpy (f->_IO_write_ptr, s, count);
      f->_IO_write_ptr += count;
      s += count;
      to_do -= count;
  }
  //if we fill the whole space but we need more output
  if (to_do + must_flush > 0)
  {
      _IO_size_t block_size, do_write;
  //call overflow to output the buffer now
      if (_IO_OVERFLOW (f, EOF) == EOF)//end of the file
	    return to_do == 0 ? EOF : n - to_do;

  //try to output one by one block
      block_size = f->_IO_buf_end - f->_IO_buf_base;
      do_write = to_do - (block_size >= 128 ? to_do % block_size : 0);
  //output the whole blocks
      if (do_write)
	  {
	    count = new_do_write (f, s, do_write);
	    to_do -= count;
	    if (count < do_write)
	      return n - to_do;
	  }

      /* Now write out the remainder.  Normally, this will fit in the
	 buffer, but it's somewhat messier for line-buffered files,
	 so we let _IO_default_xsputn handle the general case. */
      if (to_do)
	    to_do -= _IO_default_xsputn (f, s+do_write, to_do);
    }
  return n - to_do;
}

_IO_default_xsputn：输出剩余部分的函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
_IO_size_t _IO_default_xsputn (_IO_FILE *f, const void *data, _IO_size_t n)
{
  const char *s = (char *) data;
  _IO_size_t more = n;
  for (;;)
  {
    if (f->_IO_write_ptr < f->_IO_write_end)
	{
  //get the free space of write buf
	    _IO_size_t count = f->_IO_write_end - f->_IO_write_ptr;
	    if (count > more)
	      count = more;
  //first way to copy
	    if (count > 20)
	    {
	      memcpy (f->_IO_write_ptr, s, count);
	      f->_IO_write_ptr += count;
	      s += count;
	    }
  //second way to copy
	    else if (count)
	    {
	      char *p = f->_IO_write_ptr;
	      _IO_ssize_t i;
	      for (i = count; --i >= 0; )
		    *p++ = *s++;
	      f->_IO_write_ptr = p;
	    }
  //finish copy
	    more -= count;
	}
  //call syswrite until all the needs are done of file end
    if (more == 0 || _IO_OVERFLOW (f, (unsigned char) *s++) == EOF)
	  break;
    more--;
  }
  return n - more;
}

_IO_doallocate：申请缓冲区并设置buf与read指针

1
2
3
4
5
6
7
8
9
int _IO_file_doallocate (_IO_FILE *fp)
{
  size = _IO_BUFSIZ;//8192 bytes
  //some options dealing with size……
  p = malloc (size);
  //set buf base and end
  _IO_setb (fp, p, p + size, 1);
  return 1;
}

_IO_new_file_overflow：建立并且刷新缓冲区

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
int _IO_new_file_overflow (_IO_FILE *f, int ch)
{
  // If currently reading or no buffer allocated.
  if ((f->_flags & _IO_CURRENTLY_PUTTING) == 0 || f->_IO_write_base == NULL)
  {
    //condition1：need a buffer
    if (f->_IO_write_base == NULL)
	  {
    //alloc the buffer and set buf base/buf end
	  _IO_doallocbuf (f);
	  _IO_setg (f, f->_IO_buf_base, f->_IO_buf_base, f->_IO_buf_base);
	  }
    //if read has done,put the read ptr at the buf begin
    if (f->_IO_read_ptr == f->_IO_buf_end)
	    f->_IO_read_end = f->_IO_read_ptr = f->_IO_buf_base;
    //the rest of buffer are used to write
    f->_IO_write_ptr = f->_IO_read_ptr;
    f->_IO_write_base = f->_IO_write_ptr;
    f->_IO_write_end = f->_IO_buf_end;
    f->_IO_read_base = f->_IO_read_ptr = f->_IO_read_end;

    f->_flags |= _IO_CURRENTLY_PUTTING;
    if (f->_mode <= 0 && f->_flags & (_IO_LINE_BUF | _IO_UNBUFFERED))
	    f->_IO_write_end = f->_IO_write_ptr;
  }
  //if the last char is EOF
  if (ch == EOF)
    return _IO_do_write (f, f->_IO_write_base,f->_IO_write_ptr - f->_IO_write_base);
  //buffer is full
  if (f->_IO_write_ptr == f->_IO_buf_end )
    if (_IO_do_flush (f) == EOF)
      return EOF;
  *f->_IO_write_ptr++ = ch;
  if ((f->_flags & _IO_UNBUFFERED) || ((f->_flags & _IO_LINE_BUF) && ch == '\n'))
    if (_IO_do_write (f, f->_IO_write_base, f->_IO_write_ptr - f->_IO_write_base) == EOF)
      return EOF;
  return (unsigned char) ch;
}

new_do_write：调用输出系统调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
static
_IO_size_t
new_do_write (_IO_FILE *fp, const char *data, _IO_size_t to_do)
{
  _IO_size_t count;
  //adjust the write pointer……
  count = _IO_SYSWRITE (fp, data, to_do);
  if (fp->_cur_column && count)
    fp->_cur_column = _IO_adjust_column (fp->_cur_column - 1, data, count) + 1;
  //set all pointer at the begining
  _IO_setg (fp, fp->_IO_buf_base, fp->_IO_buf_base, fp->_IO_buf_base);
  fp->_IO_write_base = fp->_IO_write_ptr = fp->_IO_buf_base;
  fp->_IO_write_end = (fp->_mode <= 0
		       && (fp->_flags & (_IO_LINE_BUF | _IO_UNBUFFERED))
		       ? fp->_IO_buf_base : fp->_IO_buf_end);
  return count;
}

而对于fwrite而言，核心函数则是_IO_xsputn，该函数先尽力向缓冲区中加入用户需要输出的数据，所需输出的数据处于_IO_write_base和_IO_write_ptr之间，如果还是有待输出数据，则进行输出并刷新缓冲区，即运行_IO_OVERFLOW。
在该函数中，如果运行时文件还没有缓冲区，就建立一个缓冲区，但是，这时建立的缓冲区_IO_write_end为缓冲区的末尾；如果是一个存在缓冲区的文件进行_IO_OVERFLOW，则直接调用new_do_write。
简单来说_IO_OVERFLOW的前半部分负责输出缓冲区的初始化；new_do_write负责输出，并在输出后将输入指针和输出指针重置。

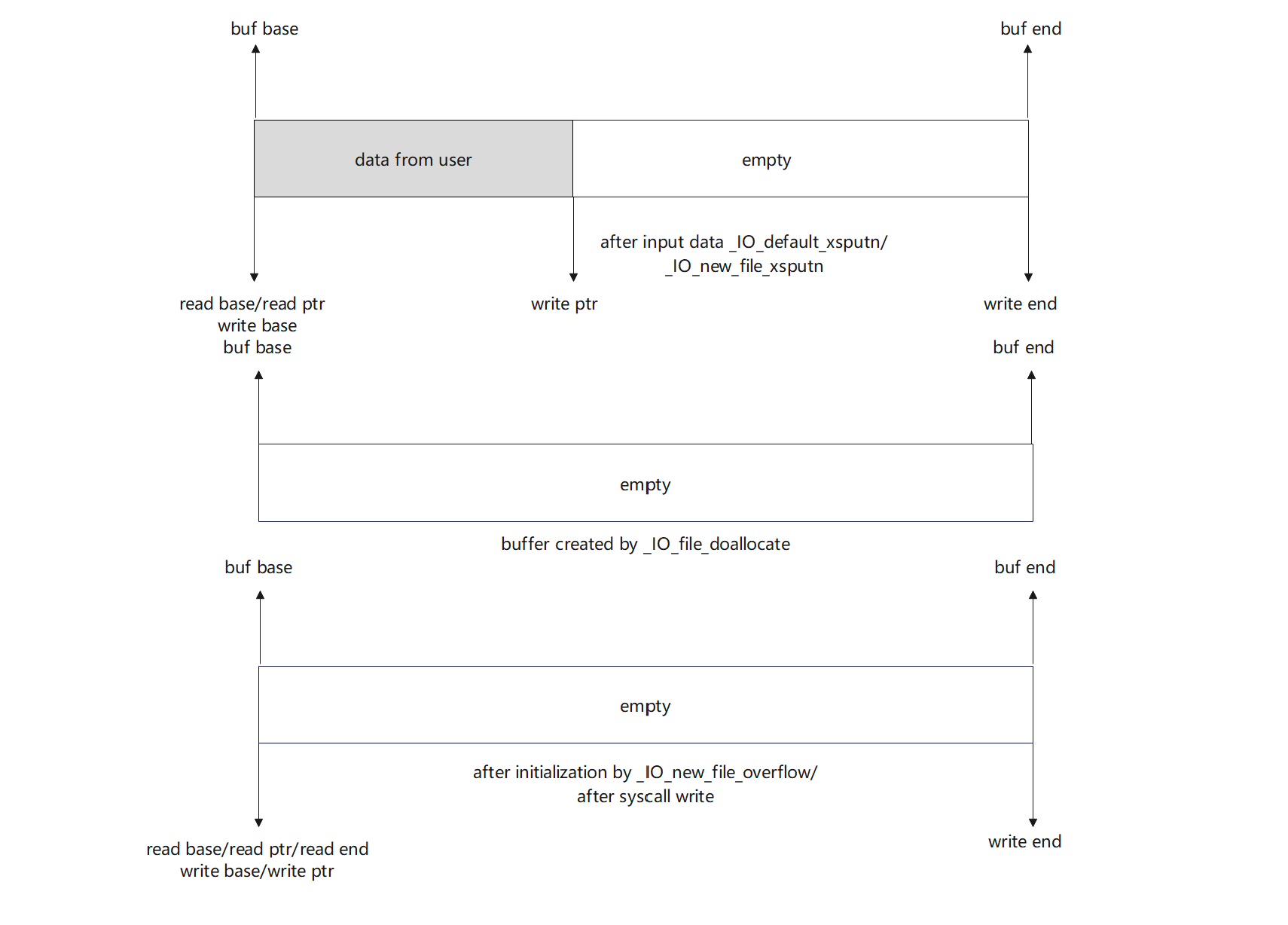

fwrite缓冲区操作

reference:

零基础要如何破除 IO_FILE 利用原理的迷雾 http://tttang.com/archive/1742/#toc_io_file
IO FILE之fread详解 https://www.anquanke.com/post/id/177958
glibc源码阅读 https://elixir.bootlin.com/glibc/glibc-2.36/source
